AN UNPARALLELED POLYPROPLENE FORMWORK FOR BUILDING CONCRETE POOLS

Every detail of the polypropylene formwork has been developed to facilitate concrete assembly and casting, in order to optimise concrete quality and resistance.  The unique and patented formwork enables pool makers to gain considerable time and productivity, all while respecting the NF DTU (French Regulations for Standardised Technical Documents) concrete building standards.

A POOL MADE OF MODULAR PANELS WHICH IS EASY AND QUICK TO INSTALL

  • It is a seamless, monoblock, reinforced concrete solution.
  • The time saved for installation is considerable – assembly and casting of an 8x4m pool is possible in just 1 day.
  • The modular panels are clipped by a press in the factory, and supplied ready-assembled and fitted with reinforcements, ready to be put in place, no matter what the depth.  They are made up of a welded steel reinforcement (of 8mm diameter), and two polypropylene panels that serve as the formwork.
  • The modular panels are linked by PVC bridging rails from inside and outside the pool.



  • In non-polluting and stable polypropylene, these modular panels are easy to stock, interchangeable to simplify installation, and have an impeccable outer finish, to accommodate a liner or reinforced PVC membrane.
  • The formwork also insulates the inside and outside of the pool.  It is resistant to the elements, including seismic activity, termites, growing roots and thermal shock.
  • There is less need for earthwork around the formwork.
  • The modular panels enable the construction of concrete pools of all shapes and sizes, from in ground, partially in ground and above ground pools, free-form pools, small pools, infinity and mirror pools and all associated concrete designs.



Montage du coffrage perdu sur sabots - aquafea

FORMWORK INSTALLATION ON BLOCKS



It is the most advantageous method, in terms of saving time and productivity.

Making clean concrete on the pool’s periphery

Set up of formwork on blocks, and set up

Put in place supplementary linking concrete rods

Concrete casting in the formwork, then the raft slab is made in one go

Download the manual for installation on blocks



Montage du coffrage perdu sur radier - Aquafeat

FORMWORK INSTALLATION ON RAFT SLAB

  • Building the raft slab
  • Drilling the linking concrete rods
  • Placing the formwork on the raft slab and set up
  • Concrete casting in the formwork
  • Download the manual for installation on raft slab

Download the manual for installation on raft slab

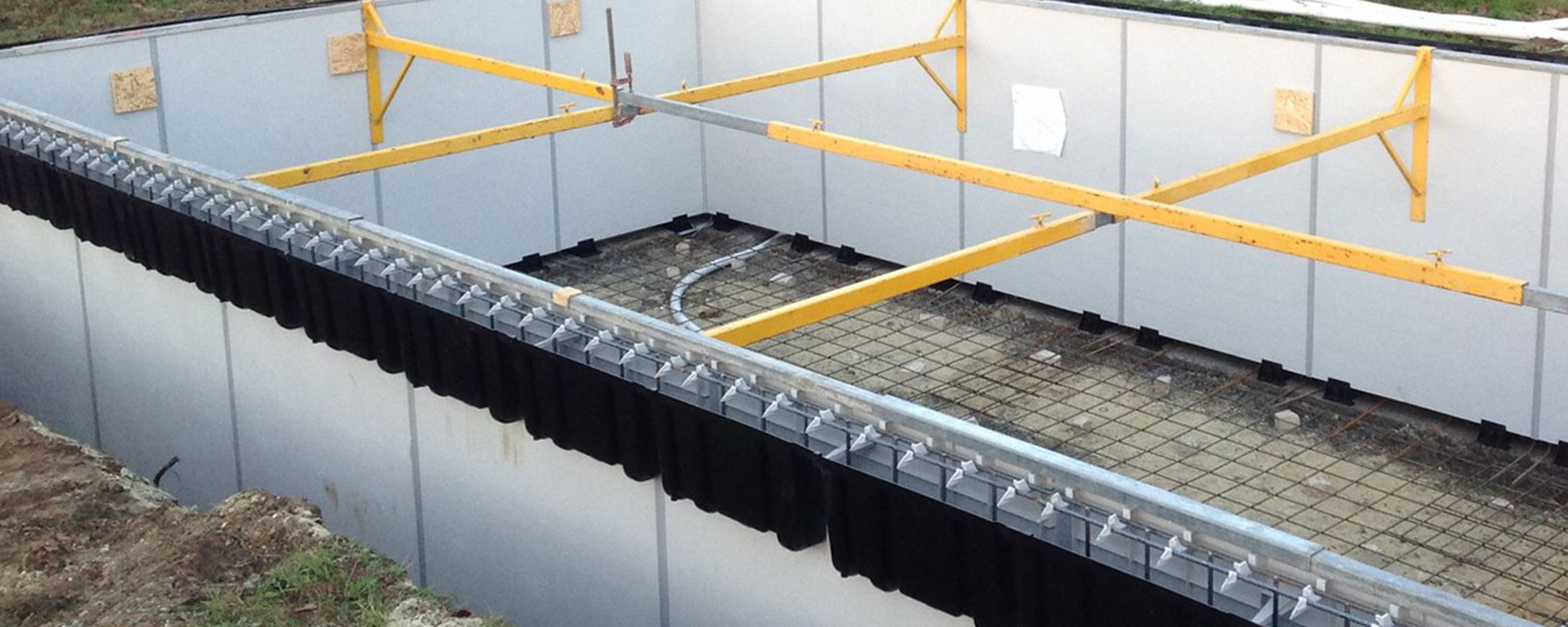

kit étayage pour renforcer la stabilité du coffrage perdu - Aquafeat

THE SUPPORT KIT FOR REINFORCED FORMWORK STABILITY

Specially designed for this formwork, the support kit aligns, stabilises and maintains the structure during concrete casting.
